Jauvane Cavalcante de Oliveira*




A Java H.263 Decoder Implementation
A PostScript Version is Available here

You may see the decoder running by clicking here.


   Project report presented as part of the requirements for the Image Processing and Communication course, ELG5378, winter 1997 term.


Prof.: Dr. Sethuraman Panchanathan


Electrical and Computer Engineering Department

UNIVERSITY OF OTTAWA

Ottawa, April 15, 1997
___________________________________
* Jauvane C. de Oliveira is sponsored by CAPES - The Brazilian Ministry of Education Agency
   Compulsory Statement: "Bolsista CAPES - Brasilia / Brasil"




Abstract

As the result of the work done as a project for the Image Processing and Communications course in the winter of 1997, this report describes the implementation of a Java H.263 video decoder. The Decoder allows H.263 coded video streams to be decoded and displayed in a window on any Java enabled machine. It shows that it’s possible to create a conferencing environment just using Java Enabled Browsers.

Keywords: ITU-T H.263, Java, ITU-T H.324, Video Codec.




Table of Contents

1. Introduction

2. The ITU-T H.324 Recommendation

2.1. Scope

2.2. Functional Elements

3. The ITU-T H.263 Recommendation

3.1. Historic

3.2. H.263 x H.261

3.3. The H.263 Source Coder  3.3.1. Prediction

3.3.2. Motion compensation

3.3.3. Quantization

3.3.4. Zig-Zag Scan  3.4. Semantic and Syntax  3.4.1. Picture Layer

3.4.2. Group of Block Layer

3.4.3. Macroblock Layer

3.4.4. Block Layer  4. The Java Paradigm

4.1. Java’s Architecture

4.2. Approaches for Applications for the Web

4.3. Java Advantages and Disadvantages

5. Java H.263 implementation

5.1. Codec Architecture

6. Conclusion

6.1. Further Recommendation and Future Work

References




List of Figures

Figure 2.1: Block Diagram for H.324 Multimedia Systems

Figure 2.2: Block Diagram for H.320 Multimedia Systems

Figure 2.3: ITU-T Picture Formats

Figure 3.1: Interface LBL-UCB/ViC

Figure 3.2: Interface Inria/IVS

Figure 3.3: Interface PUC-Rio/TVS

Figure 3.4: Block Diagram of the H.263 Video Codec

Figure 3.5: Block Diagram for H.261 Video Codec

Figure 3.6: H.263 picture format resolutions

Figure 3.7: Luminance and Chrominance positions inside a Macroblock

Figure 3.8: Arrangement of Blocks in a Macroblock

Figure 3.9: Syntax Diagram for Video Bitstream

Figure 3.10: Source Coder

Figure 3.11: Zig-Zag Scanning

Figure 3.12: Picture Layer Structure

Figure 3.13: PTYTE bits

Figure 3.14: DBQUANT codes and relation between QUANT and BQUANT

Figure 3.15: Structure of GOB layer

Figure 3.16: Structure of macroblock layer

Figure 3.17: Structure of block layer

Figure 3.18: Reconstruction levels for INTRA-mode DC coefficient

Figure 3.19: VLC table for TCOEF

Figure 3.20: FLC table for RUNS and LEVELS

Figure 4.1: The Java Architecture

Figure 4.2: The steps required to run a program written in Java

Figure 5.1: Java Video Codec Architecture

Figure 5.2: H.263 ´ H.261




Chapter I

1. Introduction

People, by their social nature, need to have interaction with others in order to be able to acquire knowledge. With ever advancing of social structure of humanity, there is an increased demand for communication in order to overcome the geographical distances. In order to accommodate the need for communication, several methods were created to facilitate that exchange, starting from the smoke signals exchanged by our ancestors till the actual telecommunication devices, such as the telephone and the Internet.

However, when a meeting among a group of persons is required, to discuss any matter, it is required that all of them relocate to a common place. This introduces lot of problems, such as money spent, security problems, scheduling and other problem. As an example, consider the world meeting ECO 92, held in Rio de Janeiro, Brazil, where the majority of head of states met to discuss ecological issues.

With the objective to improve this scenario, several research groups began studies to develop a set of communication services, called teleconferencing services.

Teleconferencing Services are defined [SoMB 88, Fluc 95] as a set of telecommunication facilities that allow the participants in two or more different places, to establish a bi-directional link through communication electronic devices, while sharing simultaneously their audio-visual environment, by having the impression that they are all in the same place.

The teleconferencing services are classified by the literature [H.200, SoMB 88, Fluc 95], as: Some other audiovisual services [H.200], having similar characteristics from the teleconferencing services share the same standards. For instance: The videoconferencing service is worthy of special attention, since all others can be defined as particular cases of videoconferencing, for instance the Audio-Graphic Conferencing can be defined as a videoconferencing without video transmission.

As a result of the research developed in the previous years, some teleconferencing prototypes, particularly videoconferencing, were introduced. However, these prototypes present some limitations. Many of them don’t adhere to accorded standards, and are limited to the audio and video transmission without synchronism.

In order to be able to exchange information with others, a system has to adhere to the established standards for each media, such as audio, video, data, as well as for the multimedia/hypermedia object interchange. The international standardization organizations (ISO and ITU-T) suggest H.261 [H.261] or H.263 [Draft H.263] for real time video codification, MPEG, MPEG-2 or MPEG-4 [Fluc 95] for video storage/retrieval, JPEG [Wall 91] for static image codification, G.711, G.722, G.728, G.723 [G.711, G.722, G.728, Draft G.723], MHEG [MHEG 95]for multimedia/hypermedia interchange. H.221 or H.223 [H.221, H.223] for framing, H.245 [Draft H.245] for multimedia control signaling, as well as security mechanisms [Schn 95]. A more detailed description of the videoconferencing scenario can be found in [Oliv 96].

Portability is a very common problem that occurs when a multimedia system is being implemented. Usually, a version for each machine has to be written, and it is really hard to manage this kind of code: for instance, imagine if after finishing the coding for ten different machines, some improvement is going to be done in the system; unfortunately, this modification has to be done in each of the ten codes, which is not a trivial task. Some few years ago, Sun Microsystems introduced a new language that eliminates the portability problem. This language, called JAVA, allows a program to be written just once and to run on the ten machines with no modifications in the code. Because of this, that improvement can be easily done, since there is just one code to be updated.

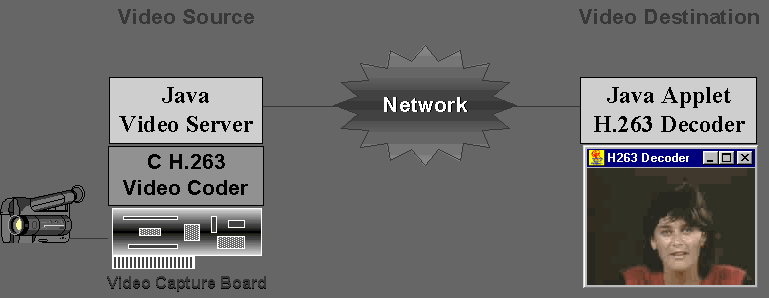

This project report presents an H.263 Java decoder that can be used to allow the required standard video transmission by any Java enabled machine. This decoder was written during the 1997 winter term for the Image Processing and Communication course given at the Electrical and Computer Engineering at the University of Ottawa and lectured by Prof. Dr. Sethuraman Panchanathan.

This document is organized as follows: an overview of the ITU-T H.324 recommendation set is presented in the second chapter. This overview addresses, but is not limited to, H.324´ H.320, H.261´ H.263 (the next chapter covers this in depth), H.223´ H.221, H.245´ H.242+H.230 and H.723´ H.711+H.722+H.725+H.728 recommendations. The third chapter presents an in depth analysis of the ITU-T H.263 recommendation. In the following chapter (fourth), the Java paradigm is presented, with a discussion of its advantages and disadvantages. Then, in chapter five, the Java H.263 Decoder is introduced, including some evaluation of the decoder as well as a contrast between the ITU-T H.261 and H.263 video codec recommendations. Finally, the report presents some conclusions and the references quoted through the text.




Chapter II

2. The ITU-T H.324 Recommendation

In 1990 the ITU-T released the H.320 [H.320] recommendation which was updated in 1993. This recommendation defined a set of recommendations, stated also in [H.200], for an audiovisual service implementation. This recommendation defined the H.261 recommendation to be used for video coding, G.711 compulsory and G.722, G.728 optional for audio coding, and G.221 for framing among others. However, this set of recommendations was defined for transmissions from 64KB/sec to 2MB/sec, which is not possible through a network like the Internet. After this first definitions, the ITU-T Study Group 16 began developing a new set of recommendations addressing a very low bit rate videoconferencing environment. This standardization group is still working; however several drafts were already released and some of then, very recently some of them evolved into recommendations. This has happened with one of the H.324 draft that became a recommendation, but the study group already did some changes and a new draft is now available, even though the recommendation is still in the publication process [Draft H.324]. This section presents an overview of this recommendation based on its last published Draft (June 11, 1996).


2.1. Scope

This Recommendation covers the technical requirements for very low bitrate multimedia telephone terminals operating over the General Switched Telephone Network (GSTN), It is easier to use this recommendation than H.320 set on the Internet, since the H.324 was developed for low bit-rate terminals.

A diagram block for this recommendation can be seen in the Figure 2.1, where it becomes clear the recommendation set involved in it.



Figure 2.1: Block Diagram for H.324 Multimedia Systems

In order to be possible to check the differences between the H.324 and the previous H.320 recommendations, the Figure 2.2 present the same block diagram presented in the Figure 2.1, but for the H.320 recommendation, as one can see, the scope of the H.320 recommendation includes devices such as video and audio I/O equipment.




Figure 2.2: Block Diagram for H.320 Multimedia Systems

2.2. Functional Elements

The scope of Recommendation H.324 is indicated by the elements within the dashed line of Figure 2.1, which include:

PICTURE FORMAT

LUMINANCE PIXELS

ENCODER


DECODER


H.261
H.263
H.261
H.263
SQCIF
128 x 96 for H.2633
Optional3
Required1,2
Optional3
Required1
QCIF
176 x 144
Required
Required1,2
Required
Required1
CIF
352 x 288
Optional
Optional
Optional
Optional
4CIF
704 x 576
Not defined
Optional
Not defined
Optional
16CIF
1408 x 1152
Not defined
Optional
Not defined
Optional
NOTE 1 - Optional for H.320 interworking adapters.

NOTE 2 - Mandatory to encode one of the picture formats QCIF and SQCIF; optional to encode both formats.

NOTE 3 - H.261 SQCIF is any active size less than QCIF, filled out by a black border, coded in QCIF format.

Figure 2.3: ITU-T Picture Formats



Chapter III

3. The ITU-T H.263 Recommendation

3.1. Historic

In 1984, the CCITT, began to study video transmission at m*384 Kbits/s, with . Later, CCITT decided to include transmissions at n*64 Kbits/sec, with . In 1988 the CCITT published a unified standard for video transmission at p*64 Kbits/sec, where , which gives a constant bit rate from 64Kbits/sec to 1920 Kbits/sec, almost 2Mbits/sec. This standard was known as CCITT recommendation H.261.

In 1993, the CCITT, IFRB and CCIR joined, creating the actual ITU, where the ITU-T is the previous CCITT and the ITU-R is the IFRB and CCIR together. In the same year, the ITU-T released a new version of its recommendation H.261. The ITU-T H.261 recommendation was used for the development of several prototypes, such as:

Figure 3.1: Interface LBL-UCB/ViC

Figure 3.2: Interface Inria/IVS

All this systems have a very modest framerate, and proved that the H.261 is not adequate to be used on the Internet, where just low bitrate is available. In the last few years, the ITU-T began studies on Low bitrate real time video transmission. This recommendation is still in development stage. Its first draft was published in May 2nd, 1996.

All remarks that follows in this report are based on the May 2nd, 1996 ITU-T H.263 Draft Recommendation and 1993 ITU-T H.261 Recommendation. In the next sections, the structure of the H.263 bitstream is presented as well as a set of characteristics of this recommendation. Most of the time, characteristics of the H.261 recommendation are also presented in comparison.



Figure 3.3: Interface PUC-Rio/TVS


3.2. H.263 x H.261

The H.263 structure is very similar to the H.261. Figure 3.4 shows the block diagram for the H.263 codec [Draft H.263] and the Figure 3.5 shows the same block diagram, for the H.261 codec.

As can be seen, the main difference is the presence of a transmission coder/decoder in the H.261 recommendation, otherwise, the block diagram is the same.


Figure 3.4: Block Diagram of the H.263 Video Codec

Concerning the picture format, anticipate in Figure 2.3, the original H.261 recommendation adopts just two picture formats, namely CIF and QCIF. The H.263 adopts three more picture formats, 4CIF (defined first in the IVS prototype, see the big image in Figure 3.2), 16CIF and SubQCIF (SQCIF), the aspect ratio is 4:3 as in a TV.


Figure 3.5: Block Diagram for H.261 Video Codec
Picture Format
number of pixels for luminance (dx)
number of lines for luminance (dy)
number of pixels for chrominance (dx/2)
number of lines for chrominance (dy/2)
sub-QCIF
128
96
64
48
QCIF
176
144
88
72
CIF
352
288
176
144
4CIF
704
576
352
288
16CIF
1408
1152
704
576

Figure 3.6: H.263 picture format resolutions

Some extensions proposed to the H.261 codec have included the SQCIF as an QCIF image, filling the remaining space with black, since the SQCIF is smaller than the QCIF.



Figure 3.7: Luminance and Chrominance positions inside a Macroblock

Figure 3.6 presents a comparison among the five H.263 picture resolution standards, presenting the their three components: Y, CB and CR, respectively luminance and two different color components, whose values are in accordance with the ITU-R (previously CCIR) Recommendation 601. The source coder operates on non-interlaced pictures at a 30,000/1001 (» 29.97) rate. The position of the luminance and chrominance samples is presented in the Figure 3.7. The Chrominance components are sub sampled at the 4:1:1 rate, as shown in Figure 3.7, where for each four luminance components there is one chrominance component; however, there are two of them.

Both the H.261 and H.263 codecs have a four-layer hierarchical structure. The layers are Picture layer, Group of Blocks layer, Macroblock layer, and Block layer. Figure 3.9 shows the structure of each of these layers for the H.263 stream, Section 3.3 defines each of those components.

A block is an 8x8 matrix of coefficients while a macroblock is a set of 6 blocks, being 4 luminance blocks and two chrominance blocks, as shown in Figure 3.8. A Group of Blocks (GOB) is a Macroblock, and then comes the Picture when each picture is divided into groups of blocks (GOBs).


Figure 3.8: Arrangement of Blocks in a Macroblock


Figure 3.9: Syntax Diagram for Video Bitstream

H.263 defines that a group of blocks (GOB) comprises of k*16 lines, depending on the picture format (k = 1 for sub-QCIF, QCIF and CIF; k = 2 for 4CIF; k = 4 for 16CIF). The number of GOBs per picture is 6 for sub-QCIF, 9 for QCIF, and 18 for CIF, 4CIF and 16CIF. The GOB numbering is done by use of vertical scan of the GOBs, starting with the upper GOB (number 0) and ending with the lower GOB.

3.3. The H.263 Source Coder

The source coder is shown in generalized form in Figure 3.10. The main elements are prediction, block transformation and quantization.




Figure 3.10: Source Coder

3.3.1. Prediction

The prediction is inter-picture and may be augmented by motion compensation. The coding mode in which prediction is applied is called INTER; the coding mode is called INTRA if no prediction is applied. The INTRA coding mode can be signaled at the picture level ( INTRA for I-pictures or INTER for P-pictures) or at the macroblock level in P-pictures. In the optional PB-frames mode B-pictures are always coded in INTER mode. The B-pictures are partly predicted bidirectionally. The Bidirectional Prediction is optional.

3.3.2. Motion compensation

The decoder will accept one vector per macroblock or if the optional Advanced Prediction mode is used one or four vectors per macroblock. If the PB-frames mode is used, one additional delta vector can be transmitted per macroblock for adaptation of the motion vectors for prediction of the B-macroblock.

Both horizontal and vertical components of the motion vectors have integer or half integer values. In the default prediction mode, these values are restricted to the range
[-16,15.5] (this is also valid for the forward and backward motion vector components for B-pictures). In the Unrestricted Motion Vector mode however, the maximum range for vector components is [-31.5,31.5], with the restriction that only values that are within a range of [-16,15.5] around the predictor for each motion vector component can be reached if the predictor is in the range [-15.5,16]. If the predictor is outside [-15.5,16], all values within the range [-31.5,31.5] with the same sign as the predictor plus the zero value can be reached.

A positive value of the horizontal or vertical component of the motion vector signifies that the prediction is formed from pixels in the referenced picture which are spatially to the right or below the pixels being predicted.

3.3.3. Quantization

The number of quantizers is 1 for the first coefficient of INTRA blocks and 31 for all other coefficients. Within a macroblock the same quantizer is used for all coefficients except the first one of INTRA blocks. The decision levels are not defined. The first coefficient of INTRA blocks is nominally the transform DC value uniformly quantized with a step size of 8. Each of the other 31 quantizers use equally spaced reconstruction levels with a central dead-zone around zero and with a step size of an even value in the range 2 to 62.

3.3.4. Zig-Zag Scan

The coder takes advantage of the spatial redundancy through the use of DCT followed by a zig-zag scan given in Figure 3.11. The coefficient 1 is the DC coefficient.
1
2
6
7
15
16
28
29
3
5
8
14
17
27
30
43
4
9
13
18
26
31
42
44
10
12
19
25
32
41
45
54
11
20
24
33
40
46
53
55
21
23
34
39
47
52
56
61
22
35
38
48
51
57
60
62
36
37
49
50
58
59
63
64

Figure 3.11: Zig-Zag Scanning


3.4. Semantic and Syntax

3.4.1. Picture Layer

Data for each picture consists of a picture header followed by data for Group of Blocks, eventually followed by an end-of-sequence code and stuffing bits. The structure was shown in Figure 3.9 and is also presented in Figure 3.12. According to the recommendation, the PSBI is only present if indicated by CPM. TRB and DBQUANT are only present if PTYPE indicates ‘PB-frame’. Combinations of PSPARE and PEI may not be present. EOS may not be present, while ESTUF may be present only if EOS is present.
PSC
TR
PTYPE
PQUANT
CPM
PSBI
TRB
DBQUANT
PEI
 ...
PSPARE
PEI
 ...
Group of Blocks
ESTUF
EOS
PSTUF

Figure 3.12: Picture Layer Structure
Bit
 Function
1
 Always "1", in order to avoid start code emulation.
2
 Always "0", for distinction with H.261,
3
 Split screen indicator, "0" off, "1" on,
4
 Document camera indicator, "0" off, "1" on,
5
 Freeze Picture Release, "0" off, "1" on,
6-8
 Source Format, "000" forbidden, "001" sub-QCIF, "010" QCIF, "011" CIF, "100" 4CIF, "101" 16CIF, "110" reserved, "111" reserved,
9
 Picture Coding Type, "0" INTRA (I-picture), "1" INTER (P-picture),
10
 Optional Unrestricted Motion Vector mode, "0" off, "1" on,
11
 Optional Syntax-based Arithmetic Coding mode, "0" off, "1" on,
12
 Optional Advanced Prediction mode, "0" off, "1" on,
13
 Optional PB-frames mode, "0" normal I- or P-picture, "1" PB-frame.

Figure 3.13: PTYTE bits
Split screen indicator is a signal that indicates that the upper and lower half of the decoded picture could be displayed side by side. This bit has no direct effect on the encoding or decoding of the picture.

Freeze Picture Release is a signal from an encoder which responds to a request for packet retransmission or fast update request and allows a decoder to exit from its freeze picture mode and display decoded picture in the normal manner.

If bit 6-8 indicate a different source format than in the previous picture header, the current picture has to be an I-picture.

Bit 10-13 refer to optional modes that are only used after negotiation between encoder and decoder. If bit 9 is set to "0", bit 13 has to be set to "0" as well.
DBQUANT  BQUANT
00  (5xQUANT)/4
01  (6xQUANT)/4
10  (7xQUANT)/4
11  (8xQUANT)/4

Figure 3.14: DBQUANT codes and relation between QUANT and BQUANT
3.4.2. Group of Block Layer

Data for each Group of Blocks (GOB) consists of a GOB header followed by data for macroblocks. The structure is shown in Figure 3.9 as well as Figure 3.15. Each GOB contains one or more rows of macroblocks. According to the H.263 recommendation, GSTUF may be present when GBSC is present. GN, GFID and GQUANT are present when GBSC is present. GSBI is present when Continuous Presence Multipoint mode is on, as indicated in the Picture header.
GSTUF  GBSC  GN  GSBI  GFID  GQUANT  Macroblock Data

Figure 3.15: Structure of GOB layer
3.4.3. Macroblock Layer

Data for each macroblock consists of a macroblock header followed by data for blocks. The structure is shown in Figure 3.9 as well as Figure 3.16. According to the H.263 recommendation, COD is only present in pictures for which PTYPE indicates ‘INTER’, for each macroblock in these pictures. MCBPC is present when indicated by COD or when PTYPE indicates ‘INTRA’. MODB is present for MB-type 0-4 if PTYPE indicates ‘PB-frame’. CBPY, DQUANT, MVD and MVD2-4 are present when indicated by MCBPC. CBPB and MVDB are only present if indicated by MODB. Block Data is present when indicated by MCBPC and CBPY. MVD2-4 are only present in Advanced Prediction mode. MODB, CBPB and MVDB are only present in PB-frames mode.

COD  MCBPC  MODB  CBPB  CBPY  DQUANT  MVD  MVD2  MVD3  MVD4  MVDB  Block Data

Figure 3.16: Structure of macroblock layer
3.4.4. Block Layer

If not in PB-frames mode, a macroblock comprises four luminance blocks and one of each of the two colour difference blocks as shown in Figure 3.7. The structure of the block layer is shown in Figure 3.17.
INTRADC  TCOEF

Figure 3.17: Structure of block layer

In PB-frames mode, a macroblock comprises twelve blocks. First the data for the six P-blocks is transmitted as in the default H.263 mode, then the data for the six B-blocks. INTRADC is present for every P-block of the macroblock if MCBPC indicates MB type 3 or 4. INTRADC is not present for B-blocks. TCOEF is present for P-blocks if indicated by MCBPC or CBPY; TCOEF is present for B-blocks if indicated by CBPB.
Index
FLC
Reconstruction level
into inverse transform
0
 0000 0001 (1)
8
1
 0000 0010 (2)
16
2
 0000 0011 (3)
24
.
 . . .
.
.
 . . .
.
126
 0111 1111 (127)
1016
127
 1111 1111 (255)
1024
128
 1000 0001 (129)
1032
.
 . . .
.
.
 . . .
.
252
 1111 1101 (253)
2024
253
 1111 1110 (254)
2032

Figure 3.18: Reconstruction levels for INTRA-mode DC coefficient
INDEX
LAST
RUN
LEVEL
BITS
VLC CODE

INDEX
LAST
RUN
LEVEL
BITS
VLC CODE
0
0
0
1
3
 10s
58
1
0
1
5
 0111 s
1
0
0
2
5
 1111 s
59
1
0
2
10
 0000 1100 1s
2
0
0
3
7
 0101 01s
60
1
0
3
12
 0000 0000 101s
3
0
0
4
8
 0010 111s
61
1
1
1
7
 0011 11s
4
0
0
5
9
 0001 1111 s
62
1
1
2
12
 0000 0000 100s
5
0
0
6
10
 0001 0010 1s
63
1
2
1
7
 0011 10s
6
0
0
7
10
 0001 0010 0s
64
1
3
1
7
 0011 01s
7
0
0
8
11
 0000 1000 01s
65
1
4
1
7
 0011 00s
8
0
0
9
11
 0000 1000 00s
66
1
5
1
8
 0010 011s
9
0
0
10
12
 0000 0000 111s
67
1
6
1
8
 0010 010s
10
0
0
11
12
 0000 0000 110s
68
1
7
1
8
 0010 001s
INDEX
LAST
RUN
LEVEL
BITS
VLC CODE

INDEX
LAST
RUN
LEVEL
BITS
VLC CODE
11
0
0
12
12
 0000 0100 000s
69
1
8
1
8
 0010 000s
12
0
1
1
4
 110s
70
1
9
1
9
 0001 1010 s
13
0
1
2
7
 0101 00s
71
1
10
1
9
 0001 1001 s
14
0
1
3
9
 0001 1110 s
72
1
11
1
9
 0001 1000 s
15
0
1
4
11
 0000 0011 11s
73
1
12
1
9
 0001 0111 s
16
0
1
5
12
 0000 0100 001s
74
1
13
1
9
 0001 0110 s
17
0
1
6
13
 0000 0101 0000s
75
1
14
1
9
 0001 0101 s
18
0
2
1
5
 1110 s
76
1
15
1
9
 0001 0100 s
19
0
2
2
9
 0001 1101 s
77
1
16
1
9
 0001 0011 s
20
0
2
3
11
 0000 0011 10s
78
1
17
1
10
 0000 1100 0s
21
0
2
4
13
 0000 0101 0001s
79
1
18
1
10
 0000 1011 1s
22
0
3
1
6
 0110 1s
80
1
19
1
10
 0000 1011 0s
23
0
3
2
10
 0001 0001 1s
81
1
20
1
10
 0000 1010 1s
24
0
3
3
11
 0000 0011 01s
82
1
21
1
10
 0000 1010 0s
25
0
4
1
6
 0110 0s
83
1
22
1
10
 0000 1001 1s
26
0
4
2
10
 0001 0001 0s
84
1
23
1
10
 0000 1001 0s
27
0
4
3
13
 0000 0101 0010s
85
1
24
1
10
 0000 1000 1s
28
0
5
1
6
 0101 1s
86
1
25
1
11
 0000 0001 11s
29
0
5
2
11
 0000 0011 00s
87
1
26
1
11
 0000 0001 10s
30
0
5
3
13
 0000 0101 0011s
88
1
27
1
11
 0000 0001 01s
31
0
6
1
7
 0100 11s
89
1
28
1
11
 0000 0001 00s
32
0
6
2
11
 0000 0010 11s
90
1
29
1
12
 0000 0100 100s
33
0
6
3
13
 0000 0101 0100s
91
1
30
1
12
 0000 0100 101s
34
0
7
1
7
 0100 10s
92
1
31
1
12
 0000 0100 110s
35
0
7
2
11
 0000 0010 10s
93
1
32
1
12
 0000 0100 111s
36
0
8
1
7
 0100 01s
94
1
33
1
13
 0000 0101 1000s
37
0
8
2
11
 0000 0010 01s
95
1
34
1
13
 0000 0101 1001s
38
0
9
1
7
 0100 00s
96
1
35
1
13
 0000 0101 1010s
39
0
9
2
11
 0000 0010 00s
97
1
36
1
13
 0000 0101 1011s
40
0
10
1
8
 0010 110s
98
1
37
1
13
 0000 0101 1100s
41
0
10
2
13
 0000 0101 0101s
99
1
38
1
13
 0000 0101 1101s
42
0
11
1
8
 0010 101s
100
1
39
1
13
 0000 0101 1110s
43
0
12
1
8
 0010 100s
101
1
40
1
13
 0000 0101 1111s
44
0
13
1
9
 0001 1100 s
102
ESCAPE
7
 0000 011
45
0
14
1
9
 0001 1011 s
46
0
15
1
10
 0001 0000 1s
47
0
16
1
10
 0001 0000 0s
48
0
17
1
10
 0000 1111 1s
49
0
18
1
10
 0000 1111 0s
50
0
19
1
10
 0000 1110 1s
51
0
20
1
10
 0000 1110 0s
52
0
21
1
10
 0000 1101 1s
INDEX
LAST
RUN
LEVEL
BITS
VLC CODE

53
0
22
1
10
 0000 1101 0s
54
0
23
1
12
 0000 0100 010s
55
0
24
1
12
 0000 0100 011s
56
0
25
1
13
 0000 0101 0110s
57
0
26
1
13
 0000 0101 0111s

Figure 3.19: VLC table for TCOEF
Index
Run
Code
Index
Level
Code
0
0
000 000
-
-128
FORBIDDEN
1
1
000 001
0
-127
1000 0001
2
2
000 010
.
.
.
.
.
.
125
-2
1111 1110
.
.
.
126
-1
1111 1111
63
63
111 111
-
0
FORBIDDEN
127
1
0000 0001
128
2
0000 0010
.
.
.
253
127
0111 1111

Figure 3.20: FLC table for RUNS and LEVELS




Chapter IV

4. The Java Paradigm

In 1990, Sun Microsystems began studies on development of a platform independent object oriented language. Some few years ago, a first version of this language was available. The language was named Java. After this two released updates, versions 1.0.2 and the newest 1.1. are mostly widely used at this moment.

4.1. Java’s Architecture

Java’s Architecture, shown in Figure 4.1, consists of a two step procedure, to run a program: First, a programmer writes a Java source code and compiles it. The Java compiler (javac) creates an intermediate code, called Byte Code. The Byte Code is an intermediate code, not a specific code for a specific machine; it runs on an abstract machine called the Java Virtual Machine (java). That’s why the code can run in any Java enabled machine. It is sufficient for a particular machine to have a Java Virtual Machine (JVM) implementation to run any Java code. In the second step, the user submits a previously compiled Java Byte Code to the JVM, in order to run the application. The JVM originally works as an interpreter. All this process is summarized in the Figure 4.2.



Figure 4.1: The Java Architecture

There are two different kinds of Java programs. The first is called a system, and works like a standard program such as a C code, the only difference is that the system runs over the JVM, through an interpretation procedure; the second Java program type is called Applet, which consist of a program that runs inside a Java Enabled Browser, such as Netscape, Microsoft Internet Explorer, or Sun’s HotJava. A Java Enabled Browser contains an implementation of a JVM, which makes possible the execution of Java Byte Code. An Applet has a set of restrictions that were imposed for security reasons. For instance, an Applet is not allowed to handle any hardware device, e.g. as Hard Drive. So, it is not possible for somebody to write a harmful Applet which would delete all files on a Hard Disk.


Figure 4.2: The steps required to run a program written in Java


The main feature of Java is the portability which makes easily possible the maintenance of a program that is supposed to run on several different machines.

4.2. Approaches for Applications for the Web

Until the creation of Java, when an application was available on the Internet, the user had to find the application, download the right version for his/her machine and operating system, if it is available, install the program, and finally, run it. Problem may occur if the program is not available for a determined machine, for instance, a version for OS2 is usually not available on the Internet. Now with Java, and particularly Applets, a user just has to find the application he/she needs, click in the application’s link and the application will run. Automatically the application will be downloaded, installed, submitted to the JVM, and then executed. After the execution, the program will be automatically deleted. In the next time the user runs the program, the actual version will pass through the same process. Here we found another advantage in using Java Applets. If the programmer updates something in the Applet, for example including a new option in it, the user will run this new version without any necessary action from the user point of view in order to update his/her program, which is required for the conventional program paradigm.

4.3. Java Advantages and Disadvantages

As advantages, it is possible to quote the following: On the other hand, it is possible to enumerate the following disadvantages:


Chapter V

5. Java H.263 implementation

The goal of this project was to write an H.263 decoder in Java, in order to take advantage of the portability of the language. Now, the code can be converted into an Applet, since it does not access any device and can receive the video stream from a network connection. In this chapter, the implementation is presented as well as some limitations of Java in bit operations.

5.1. Codec Architecture

The Codec was planned with the architecture presented in the Figure 5.1 in mind. In some place, a user has a video camera that provides video to a video capture board, this video grabber provides the video stream to a small program, written in C due to performance matter, and this program receives the video stream and codes it into an H.263 video stream. Then, this video stream is provided to a Java Application, that works as a server as defined in the previous chapter. This Java Server, called Java Video Server just sends the H.263 video stream to an Applet that has required it through a network connection. On the other side of the network a user that is running the Java Decoder Applet (JDA), will see the video sent by the server in a window that the JDA opens to display the video.

Java was not developed for efficient bit handling. The performance of this decoder is heavily damaged because of it; however, the new versions of Java will introduce some new features that should improve the performance.



Figure 5.1: Java Video Codec Architecture

In the actual decoder, a method to convert from a Byte into an Integer and from an Integer back to Byte was required (Byte = 8 bits signaled integer; Integer 32 bits signaled integer). The problem shown bellow, required the implementation of the following methods:

From Byte to Integer: From Integer to Byte: int Byte2Int(byte bValue)
{
    int iReturn = bValue;
    return iReturn&0xff;
}

byte Int2Byte(int iValue)
{
    byte bReturn=0;

    iValue &= 0xff;

    if(iValue==128)
    {
        bReturn = -128;
        return bReturn;
    }

    return (byte) iValue;
}

Bellow, the dither method that convert the Y, Cr, Cb components used by the ITU-T H.263 recommendation into the RGB components required to create a Java Image is presented. Note that for each component, the above Byte2Int and Int2Byte methods have to be performed several times, which degrades the performance substantially.

void Color32DitherImage(byte src[][], int out[])
{
    byte lum[] = src[0];
    byte cb[] = src[1];
    byte cr[] = src[2];
    int cols, iCR=0, iCB=0, iLUM=0;
    int rows;
    int L, CR, CB;
    int row1, row2;
    int lum2;
    int x, y;
    int cr_r;
    int cr_g;
    int cb_g;
    int cb_b;
    int cols_2;

    cols = coded_picture_width;
    rows = coded_picture_height;
    cols_2= cols/2;
    row1 = 0;
    row2 = cols_2 + cols_2;
    lum2 = cols_2 + cols_2;

    for(y=0; y<rows; y+=2)
    {
        for(x=0; x<cols_2; x++)
        {
            int R, G, B;

            CR = Byte2Int(cr[iCR++]);
            CB = Byte2Int(cb[iCB++]);
            cr_r = Cr_r_tab[CR];
            cr_g = Cr_g_tab[CR];
            cb_g = Cb_g_tab[CB];
            cb_b = Cb_b_tab[CB];

            L = L_tab[Byte2Int(lum[iLUM++])];

            R = (L + cr_r);
            G = (L + cr_g + cb_g);
            B = (L + cb_b);

            out[row1++] = (0xff<<24 | R<<16 | G<<8 | B );

            L = L_tab[Byte2Int(lum[iLUM++])];

            R = (L + cr_r);
            G = (L + cr_g + cb_g);
            B = (L + cb_b);

            out[row1++] = (0xff<<24 | R<<16 | G<<8 | B );

            L = L_tab [Byte2Int(lum[lum2++])];

            R = (L + cr_r);
            G = (L + cr_g + cb_g);
            B = (L + cb_b);

            out[row2++] = (0xff<<24 | R<<16 | G<<8 | B);

            L = L_tab [Byte2Int(lum[lum2++])];

            R = (L + cr_r);
            G = (L + cr_g + cb_g);
            B = (L + cb_b);

            out[row2++] = (0xff<<24 | R<<16 | G<<8 | B);
        }
        iLUM += cols_2 + cols_2;
        lum2 += cols_2 + cols_2;
        row1 += cols_2 + cols_2;
        row2 += cols_2 + cols_2;
    }
}

Both methods Int2Byte and Byte2Int are also largely used during the decoding of the video stream, where each byte has to be converted into an integer, that works as a buffer with 32 bits inside.

// return next n bits (right adjusted) without advancing
int ShowBits(int piNumber)
{
    int iValue;
    int iByte=0;
    int iCalc;

    if(iInputCounter<piNumber)
        FillBuffer();

    iValue = (96 - iInputCounter)>>>3;

    iByte=(Byte2Int(viInputBuffer[iValue])<<24)|(Byte2Int(viInputBuffer[iValue+1])<<16)|(Byte2Int(viInputBuffer[iValue+2])<<8)|Byte2Int(viInputBuffer[iValue+3]);

    iCalc = ((iInputCounter-1) & 7) + 25;

    return (iByte>>>(iCalc-piNumber)) & viMask[piNumber];
}




Figure 5.2: H.263 ´ H.261

The H.263 Codec has a better performance than the H.261 Codec discussed in Chapter 2 and 3. Figure 5.2 shows a comparison between them. The performance of the decoder written in Java is very fair, since the frame rate of just 2 frames/sec was reached. The frame rate should be improved when the next release of Java becomes available. In future a new structure called Multimedia Framework will be included which should improve the bit operation capabilities.

The decoder has a little bit more than 3860 lines, just for comparison, this document up to this point has 1930 lines, exactly one half of the decoder source code.




Chapter VI

6. Conclusion

The implementation of an H.263 Java Decoder as well as an architecture for exchange of video transmission through a network was presented in this document. Due to the fact that the decoder was written in Java, it is possible to receive the video on any machine, such as Windows95, MacOS or Unix stations. This decoder is going to be used in the JETS project (Java Enabled TeleColaboration System) at Multimedia Communications Research Laboratory to create a videoconferencing environment over Java Enabled Browsers, such as Netscape, Microsoft Internet Explorer, Sun’s HotJava, etc.

The Decoder has shown to be robust; however the frame rate needs a substantial improvement.

6.1. Further Recommendation and Future Work



References

[ChHa 96] Cherriman, P.; Hanzo, L. - "Robust H.263 Video Transmission over Mobile Channels in Interference Limited Environments" - 1st IEEE Wireless Video Communication Workshop, UK, September, 1996.

[Draft G.723] International Telecommunication Union, Telecommunication Standardization Sector - "Dual Rate Speech Coder for Multimedia Communications Transmitting at 5.3 & 6.3 Kbit/s" - Draft ITU-T Recommendation G.723, September 1995.

[Draft H.263] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Video Coding for Low Bitrate Communications" - Draft ITU-T Recommendation H.263, July 1995.

[Draft H.223] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Multiplexing Protocol for Low Bitrate Multimedia Communication" - Final Draft ITU-T Recommendation H.223, to be published in next.

[Draft H.324] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Terminal for Low Bitrate Multimedia Communication" - Draft ITU-T Recommendation H.324, September 1995.

[Draft H.245] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Multimedia Control Protocol" - Draft ITU-T Recommendation H.324, September 1995.

[F.730] International Telecommunication Union, Telecommunication Standardization Sector - "Telematic, Data Transmission, ISDN Broadband, Universal, Personal Communications and Teleconference Services: Operation and Quality of Service - Videoconference Service - General" - ITU-T Recommendation F.730, August 1992

[Fluc 95] Fluckiger, F. - "Understanding Networked Multimedia - Applications and Technology" - Prentice Hall, 1995

[G.711] Comité Consultatif International de Télégraphique et Téléphonic - "Pulse Code Modulation (PCM) of Voice Frequencies" - CCITT Recommendation G.711, from CCITT Blue Book.

[G.722] Comité Consultatif International de Télégraphique et Téléphonic - "7kHz Audio-coding Within 64 kbits/s" CCITT Recommendation G.722, from CCITT Blue Book.

[G.725] International Telecommunication Union, Telecommunication Standardization Sector - "General Aspects of Digital Transmission Systems; Terminal Equipment - System Aspects for the Use of the 7 kHz Audio Codec Within 64 kbit/s" - ITU-T Recommendation G.725, 1988.

[G.728] International Telecommunication Union, Telecommunication Standardization Sector - "General Aspects of Digital Transmission Systems; Terminal Equipment - Coding of Speech at 16 kbit/s Using Low-Delay Code Excited Linear Prediction" - ITU-T Recommendation G.728, September 1992.

[H.200] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Framework for Recommendations for Audiovisual Services" - ITU-T Recommendation H.200, March 1993.

[H.221] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Frame Structure for a 64 to 1920 kbit/s Channel in Audiovisual Teleservices" - ITU-T Recommendation H.221, March 1993.

[H.230] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Frame Synchronous Control and Indication Signals for Audiovisual Systems" - ITU-T Recommendation H.230, March 1993.

[H.242] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - System for Establishing Communication Between Audiovisual Terminals Using Digital Channels up to 2 Mbit/s" - ITU-T Recommendation H.242, March 1993.

[H.261] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Video Codec for Audiovisual Services at p´ 64 Kbit/s" - ITU-T Recommendation H.261, March 1993.

[H.320] International Telecommunication Union, Telecommunication Standardization Sector - "Line Transmission of non-Telephone Signals - Narrow-Band Visual Telephone Systems and Terminal Equipment" - ITU-T Recommendation H.320, March 1993.

[IETF 97] Internet Engineering Task Force Draft - "RTP Payload Format for H.263 Video Stream" - March 1997.

[Levy 93] Levy, C.H. - "IUP/LED: Uma Ferramenta Portátil de Interface com o Usuário" - Master Dissertation - Computer Science Department / PUC-Rio, 1993.

[Liou 91] Liou, M. - "Overview of the p´ 64 kbit/s video coding standard" - Communications of the ACM, No. 4, April de 1991.

[McJa 95] McCane, S.; Jacobson, V. - "ViC: A Flexible Framework for Packet Video" - ACM Multimedia 95, San Francisco, CA, November 1995.

[MHEG 95] MHEG - Information Technology - "Coded Representation of Multimedia and Hypermedia Information Objects - Part 1: Base Notation", Committee Draft ISO/IEC, 1995.

[OlSo 96] Oliveira, J.C. de; Soares, L.F.G. - "TVS - Um Sistema de Videoconferência com Documentos Compartilhados - Uma Visão Geral" - WoSH’96 - II Workshop on Hypermedia Systems, XIV SBRC - Brazilian Symposium on Computer networks, May 1996.

[Oliv 96] Oliveira, J. C. de - "TVS: Um Sistema de Videoconferencia" - Master Dissertation, Computer Science Department, PUC-Rio, August de 1996.

[Schn 95] Schneier B. - "Applied Cryptography" - 2nd Edition - John Willey, November 1995.

[SoMB 88] Soares, L.F.G.; Martins, S. de L.; Bastos, T.L.P. - "LAN Based Real Time Audio-Graphics Conferencing System, General Overview" - CCR066 Technical Report Rio Scientific Center-IBM Brazil, November 1988.

[STCN 92] Soares, L.F.G.; Tucherman, L.; Casanova, M.A.; Nunes, P.R.R.L. - "Fundamentos de Sistemas Multimídia" - VIII Computer Science School, Gramado, Brazil, 1992.

[Turl 93] Turletti, T. - "A H.261 Software Codec for Videoconferencing over the Internet" - INRIA Research Report, # 1834, January 1993.

[Turl 94] Turletti, T. - "The INRIA Videoconferencing System (IVS)" - ConneXions, Volume VIII, # 10, October 1994

[Turl 95] Turletti, T. - "Contrôle de Transmission pour Logiciel de Vidéoconférence sur l'Internet" - Doctorate Thesis, L'Universite de Nice - Sophia Antipolis, April 1995.

[Wall 91] Wallace, G.K. - "The JPEG Still Picture Compression Standard" - Digital Equipment Corporation (Submitted for publication on December 1991 to "IEEE Transactions on Consumer Electronics"), 1991.
